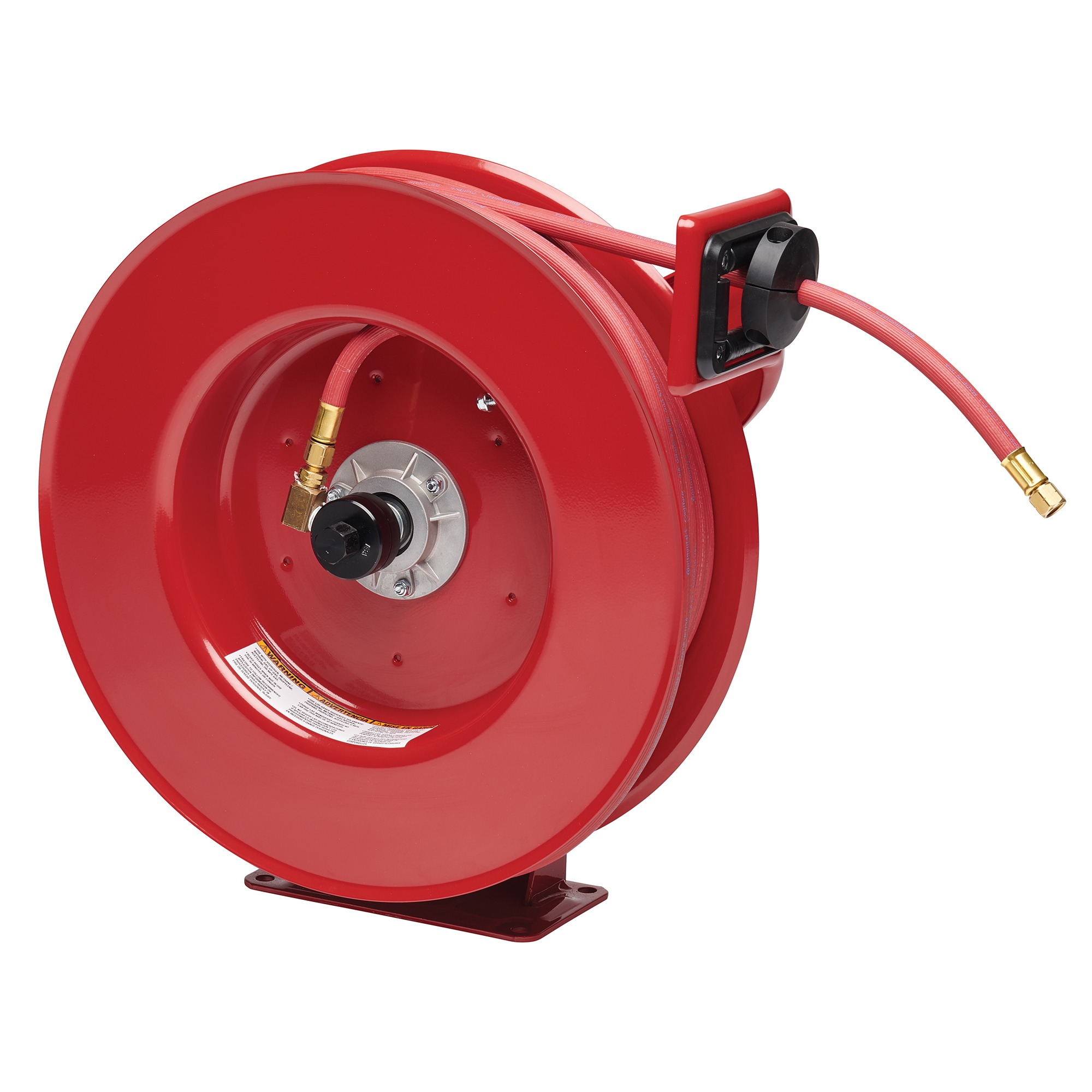

REELCRAFT SWHD76100 OLPT Welding Hose Reel, Single Line, T-Grade, 3/8 Inch x 100 ft. Size
Item: CJ6TFC
Model: SWHD76100 OLPT
Check Availability
In Stock
Get it by Tuesday, Oct 20
We deliver to your doorstep under DAP terms. Customs clearance is for your account
$958.12/unit
(ex. VAT)
Request Quote
Unlock 30-day payment terms
Business customers can apply for Net 30
No fees, No interest, Fast approval.
Delivery
Specifications
| Item | Gas Welding Hose Reel |
|---|---|
| Dimensions A | 20 1/4" |
| Dimensions B | 19.75" |
| Dimensions C | 7 7/8" |
| Dimensions D | 3.875" |
| Dimensions E | 8 1/4" |
| Hose End Size | 9/16"-18 |
| Hose End Thread Direction | Left Hand |
| Hose End Type | Female |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
|---|---|
| Hose Length | 100 ft. |
| Hose Outside Dia. | 0.66" |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Max. Temp. | 150°F |
| Pressure | 200 psi |
| Reel Outlet Size | 9/16"-18 |
| Reel Outlet Type | Male |
| Series | HD70000 Series |
Product Details
,The new Reelcraft Series SW single line hose reel expands the industry-leading welding series and is specifically designed to improve work area safety and increase efficiency and productivity when transferring fuel gases., ,Reel, , ,Hard coated wear-resistant aluminum double-sealed full flow swivel, ,Corrosion-resistant baked-on powder coat, , ,Hose, , ,Ideal for welding service – meets ARPM IP-7 and CGA E-1 standards for T-grade, ,Non-conductive, ,Tube: Synthetic rubber compound compatible with all common welding fuel gases, ,Reinforcement: Spiral synthetic yarn, ,Cover: Red synthetic rubber with ribbed surface, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
Shipping Information
| Height (cm) | 56.52 |
|---|---|
| Length (cm) | 53.98 |
| Width (cm) | 34.29 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 33.7500 |
