MORSE DRUM 86 Below Hook Drum Lifter, 1000 lb Holding Capacity, Carbon Steel, No Tilt

In Stock
Item: AF6EYB
Model: 86
Cross Ref: 30CM65
Delivery to

Get it by Feb 14, Tuesday

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$574.00 /unit (ex. VAT)
Add To Cart
Request Quote

Payment Methods

Delivery Methods

100% insured against loss or damage during transit

Orders ship from our US warehouse via Fedex / DHL

Full OEM warranty coverage provided

We offer air or sea freight for bulky / heavy items

30-day returns on any online purchase

Buy it with

x1
x1

Total Price:

$1,188.73

Specifications

Item Below-Hook Drum Lifters
Capacity 1000 lb.
Drum Capacity 55 Gallon
Drum Dia. 22" to 23.5"
Drum Height 23 to 38"
Drum Type Plastic, steel or fiber
Finish Blue
group 30
Level Height 49-1/4"
Lifting Eye Dia. 2-3/8"
Material Carbon Steel
Number Drums 1
Overall Height 49.25"
Overall Length 25.5"
Overall Width 24
tilt None
Type Vertical

Product Details

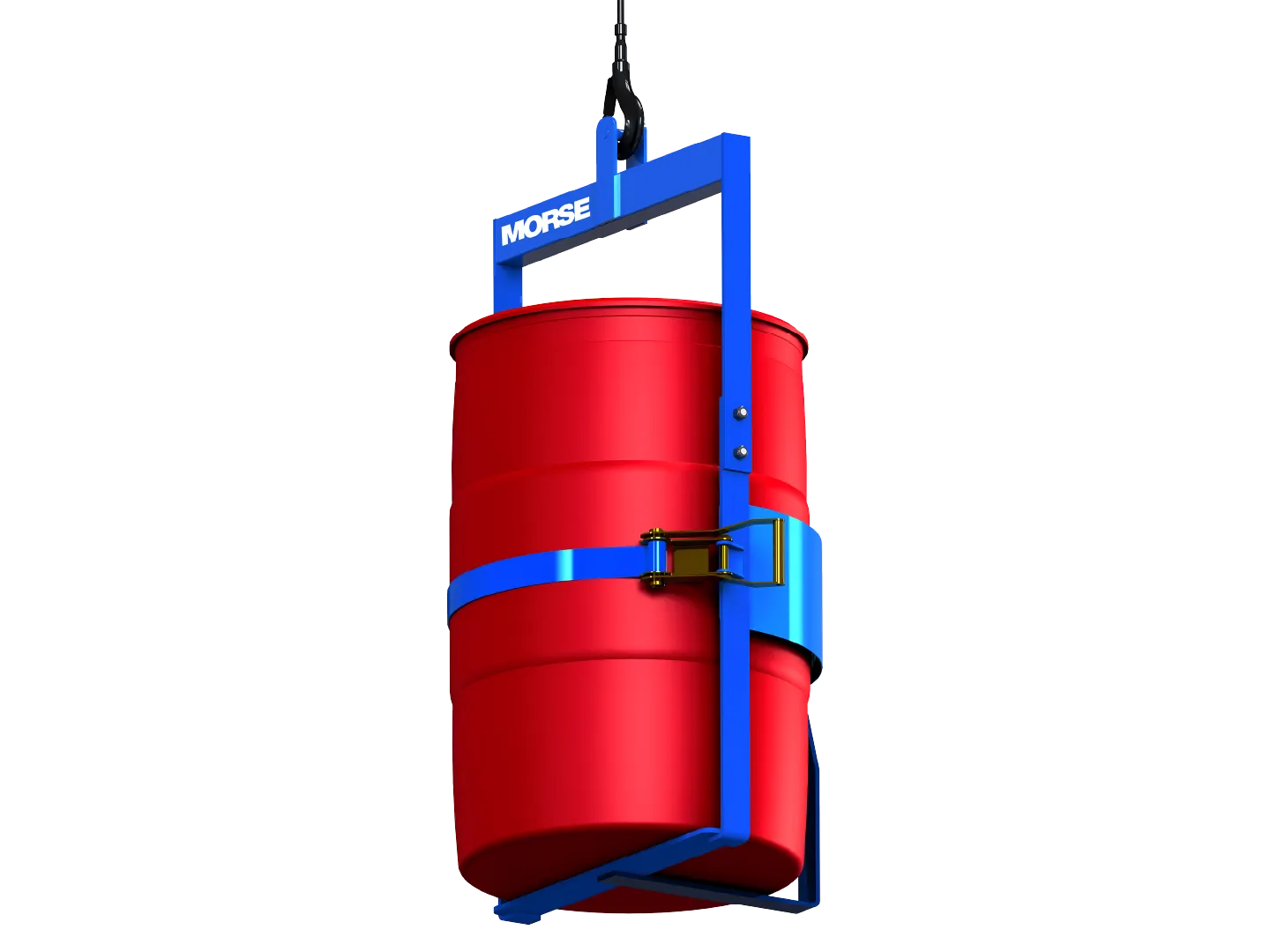

Morse 86 drum lifter is a special device used for lifting, shifting & emptying purposes and can bear loads up to 1000 lb. It protects employees from physical damage and improves the efficiency of the workflow. The drum can be secured using web straps and ratchet positive grip mechanism. It is supported by a bar at the bottom, which ensures that the drum is transported safely, with no chance of sliding out. Once loaded, Morse 86 drum lifter carries the drum without tilting it. This Morse drum lifter is load tested at the factory at 125% of the rated capacity, as per American National Standard ASME B30.20. Each unit is accompanied by a load test certificate. Morse 86 drum lifter is constructed using high quality, solid carbon steel to provide stability during transit.

Shipping Information

Height (cm) 78.74
Length (cm) 78.74
Width (cm) 43.18
HS Code 8428900390
Country Of Origin US
Weight (kg) 25.2

Uses

Morse 86 drum lifter is intended for grabbing, lifting, and moving steel drums & barrels, as well as plastic & fibre drums at construction sites, docks and mezzanines. Throughout the manufacturing process, this drum lifter lifts and empties drums into machines or filling lines.

Features

  • Morse 86 drum lifter is an ANSI / ASME B30.20 compliant, below-the-hook barrel lifter. It transports drums by lifting them vertically, with the help of hoists, monorails or cranes.
  • This barrel lifter is extensively used in oil rigs, docks, construction sites & mezzanines.
  • The drums are supported by a bar underneath and secured using a positive grip web strap and a ratchet mechanism.
  • This product is made of carbon steel, but is also available in a stainless steel version (Morse Drum 86-SS). This drum lifter can carry drums weighing up to 1000 lb. Each unit comes with a load test certificate, tested at 125% of the rated load capacity.
  • It is used with 55 gallon (208 litre) drums having diameters ranging between 56 and 60 cm. For smaller diameter drums, Morse offers diameter adapters that are sold separately.
  • Morse drum lifter is a versatile unit that works with rimmed / rimless steel, fibre & plastic drums. It can be attached to a forklift using a Morse fork mount hook.

Compatible Accessories

  • Morse 284 fork hooks: These fork hooks are used to attach Morse 86 drum lifter to a forklift for providing a quick and cost effective method of lifting and positioning drums.
  • Morse 55 / 30 Series drum diameter adapters: These drum diameter adapters allow the operator to handle a small diameter drum using the same Morse drum handler. Inserting the diameter adapter reduces the grip diameter required to fit a drum smaller than the standard size, into the drum lifter.
  • Morse 6314-P cinch chain & ratchet: These cinch chains and ratchets replace standard web strap and ratchet around the drum. The operator can tighten the cinch chain around the drum to secure it in the drum lifter.
  • Morse 6315-P fork pockets: These fork pockets are added to below hook drum handlers for improving the safety of forklift drum handling. It can be easily installed on models like 85A, 85G, 86, 85i, 185A.

Standards and Approvals

  • Morse 86 below the hook drum lifter is built in accordance with international standards like American National Standard ASME B30.20. It ensures environmental health, user safety and enhanced performance.

Installation

  • Morse 86 below the hook drum lifter can be attached to a hoist or crane hook to lift and move an upright drum.
  • The drum can be secured using a web strap and ratchet positive grip mechanism around the drum.

Documentation

morse-drum-86.pdf

Certifications

Frequently Asked Questions

Why choose Morse 86 drum lifter?

Morse 86 drum lifter is a smart device designed to handle and transport heavy drums in factories and warehouses that produce food, cosmetics, pharmaceuticals & chemical substances, and must store large quantities of barrels filled with different liquids or powders. It is supported by a bar at the bottom, which ensures that the drum is transported safely, with no chance of sliding out.

What is the maximum load capacity of drums for Morse 86?

Morse 86 drum lifter can handle loads up to 1000 lb.

What accessories are available for Morse 86?

Here are the accessories compatible with the Morse 86 drum lifter:

  • Morse 284 fork hooks are used for attaching Morse 86 drum lifter to a forklift for providing a quick and cost effective method of lifting and positioning drums.
  • Morse 55 / 30 Series drum diameter adapters allow the operator to handle a small diameter drum using the same Morse drum handler. Inserting the diameter adapter reduces the grip diameter required to fit a drum smaller than the standard size, into the drum lifter.
  • Morse 6314-P cinch chain & ratchet replaces standard web strap and ratchet around the drum. The operator can tighten the cinch chain around the drum to secure it in the drum lifter.
  • Morse 6315-P fork pockets are added to below hook drum handlers for improving the safety of forklift drum handling. It can be easily installed on models like 85A, 85G, 86, 85i, 185A.

What size drums can the Morse 86 lift?

Morse 86 drum lifters can accommodate drums with diameters & heights ranging from 22 to 23.5 inches (55.9 cm to 59.7 cm) & 23 to 38 inches (58.4 cm to 96.5 cm), respectively.

Can i use a forklift with Morse 86?

The Morse 86 lifter can be used with a forklift by using Morse 284 fork hooks that facilitate easy installation.

How can you improve workplace drum handling safety?

Some ways to improve drum handling safety during daily operations are:

  • Ensure the lid and bung are securely fastened on the drum before you move it. Inspect the drum for damage before moving it.
  • Wear appropriate PPE - drums containing hazardous chemicals might be coated in dangerous residue.
  • Do not attempt to move drums up and down steep slopes using manual equipment not intended for the application.
  • Use fully tested drum lifting equipment when lifting drums from (or onto) a pallet and keep your hands & other personnel clear of the drum while performing the lift.
  • Ensure the connection between the drum and the lifter is secure. If in doubt lower, the drum back down.
  • Do not keep drums in a raised position when leaving the machine unattended, even if for a short duration.
