89R Series Pneumatic Swing Clamps
(11 Products)
DESTACO
| Holding Capacity | Overall Height | Stroke | Rotating Stroke | Overall Width | Air Connection Size | Cylinder Bore Size | Air Connection Center-to-center Distance | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | 1.1" | 0.61" | - | - | - | - | $462.65 | ||
|
|
||||||||||
| - | - | 2.3" | 1 8/25" | - | - | - | - | $604.99 | ||
|
|
||||||||||
| - | - | - | - | - | - | - | - | $430.92 | ||
|
||||||||||
| - | - | - | - | - | - | - | - | $485.68 | ||
|
||||||||||
| - | - | - | - | - | - | - | - | $498.71 | ||
|
||||||||||
| - | - | - | - | - | - | - | - | $563.96 | ||
|
||||||||||
| 67 lbs. | 4.92" | 1.1" | 0.61" | 1.77" | 1/8" | 1.26" | 3.27" | $462.30 | ||

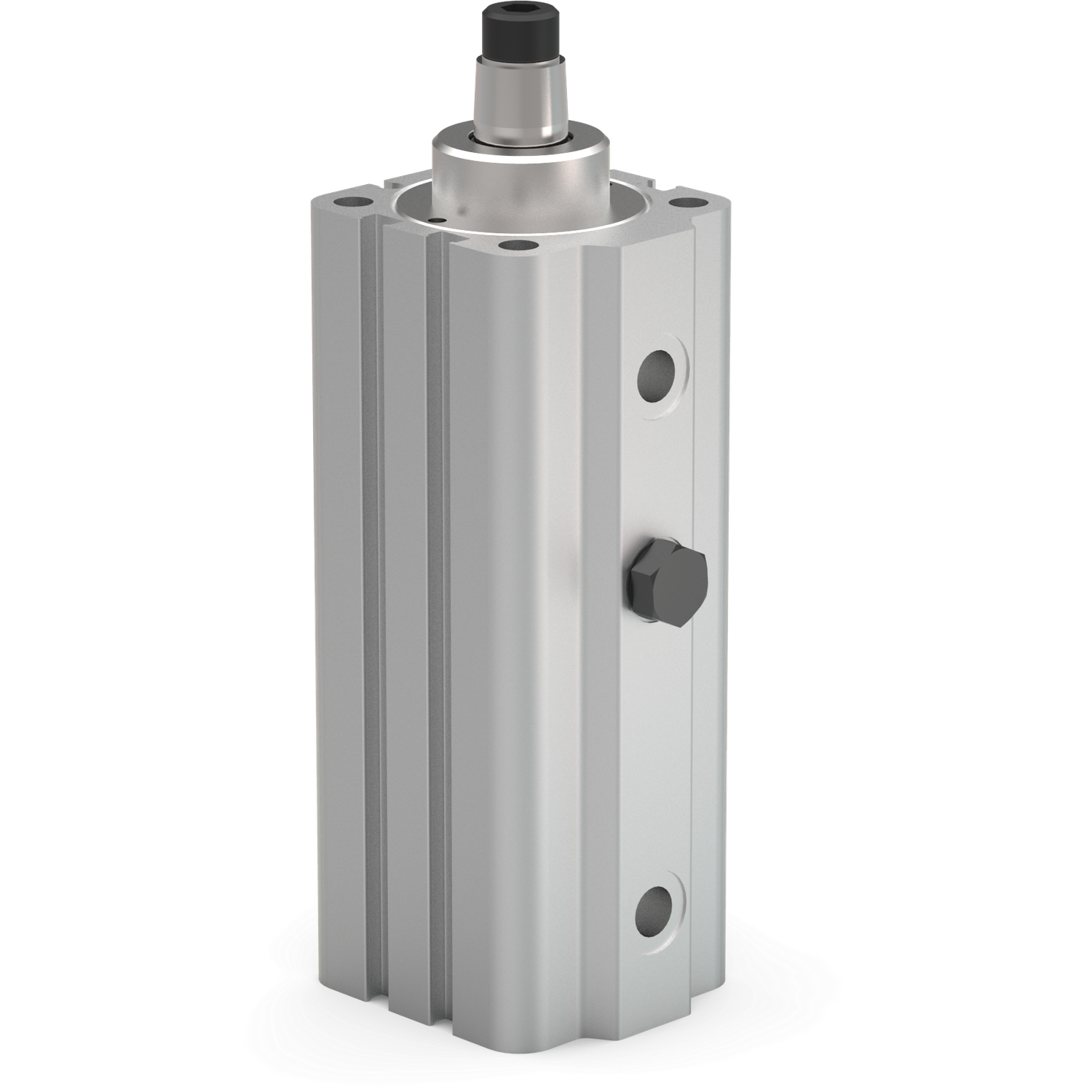

Swing / Toggle Clamp, 1.1 Inch Stroke, 55 lb Clamping ForceModel No. 89R32-010-2 SKU AC8PJQ Cross Ref. 3CXL2 |
||||||||||
| 103 lbs. | 5.51" | 1 6/25" | 0.85" | 2.15" | 1/8" | 1.57" | 3.74" | $524.75 | ||
|
||||||||||
| 103 lbs. | 6.69" | 1.83" | 0.85" | 2.15" | 1/8" | 1.57" | 4.92" | $558.52 | ||
Pneumatic Swing Clamp, Aluminium, Block Style BodyModel No. 89R40-025-2 SKU AC8PJT Cross Ref. 3CXL4 |
||||||||||
| 167 lbs. | 7.7" | 2 1/2" | 1.06" | 2 14/25" | 1/8" | 1.97" | 5.39" | $634.43 | ||
Pneumatic Swing Clamp, 2.5 Inch Stroke, 167 lb CapacityModel No. 89R50-025-2 SKU AC8PJU Cross Ref. 3CXL5 |
||||||||||
| 263 lbs. | 8.33" | 2.3" | 1 8/25" | 3.15" | 1/4" | 2.48" | 6.08" | $746.25 | ||
Pneumatic Swing Clamp, 2.3 Inch Stroke, 218 lb Clamping ForceModel No. 89R63-025-2 SKU AC8PJV Cross Ref. 3CXL6 |
||||||||||
-
- Price (Low to High)
- Price (High to Low)
Description
Destaco 89R Series pneumatic swing clamps offer lock angle repeatability with high accuracy, thereby making clamping on an extremely compact area easily possible. The compact design makes them adaptable for applications where uninterrupted and rapid acces. They are replacement clamp arms featuring lightweight aluminium construction for harsh welding environments and a locking tapered connection to provide stable connection during frictional clamping.
Uses & Applications
These Destaco pneumatic swing clamps offer a broad combination of features, making them ideal for applications such as welding, assembling, fixturing, testing and light machining in the aerospace, automotive and food & packaging industries.
Features
- These Destaco pneumatic swing clamps offer field adjustable swing direction (left / right / straight line) for flexible configuration.
- They have robust and lightweight design for multiple million cycles.
- These swing clamps come with block style body for ease-of-installation.
- They are sensor ready for T-slot or round style switches.
- These clamps are capable of operating at temperatures up to 140 degrees Fahrenheit with pressures ranging from 45 psi to 125 psi.
- They are compatible with multiple mounting accessories including body mount flanges and replacement seal kits for unobstructed functioning of the clamps.
- These units are equipped with a pneumatic cylinder to connect to a source of compressed air.
- They deliver a maximum total stroke of 58 mm and a holding capacity up to 218 lb.
- These 89R Series pneumatic swing clamps are available in left-hand and right-hand swing variants.
Standards
- These Destaco 89R Series pneumatic swing clamps are ISO 9001:2015 and ISO 14001:2015 certified.
Accessories
- Destaco 8JG-215-1, 8JG-217-1, 8JG-218-1, 8JG-219-1 & 8JG-220-1 pneumatic swing clamp arms: These Destaco pneumatic swing clamp arms are designed for the brand's pneumatic swing clamps. They feature lightweight aluminium construction for excellent structural rigidity and are equipped with a locking tapered connection that facilitates arm positioning up to 360 degrees.
- Destaco 8MA-092-1, 8MA-094-1, 8MA-095-1 & 8MA-096-1 body mount flanges: These Destaco body mount flanges allow variable height adjustment and enable recessed mounting. They can also be used with switches.
- Destaco 8MA-061-1, 8MA-063-1, 8MA-064-1, 8MA-065-1 & 8MA-066-1 end mount flanges: Destaco end mount flanges are designed for the brand's 89R Series clamps. They can be mounted on top or bottom of the clamps.
- Destaco 8MW-018-1, 8MW-020-1, 8MW-021-1, 8MW-022-1 & 8MW-023-1 mounting feet: These Destaco mounting feet can be mounted on four sides of the cylinder, including the bottom and front sides.
Installation
Destaco pneumatic swing clamp arms feature a block style body to allow the attachment of multiple mounting accessories. They are equipped with clamp arms featuring tapped holes to accommodate spindle accessories, thereby enabling easy surface mounting.
Frequently Asked Questions
- Pneumatic swing clamps are designed for clamping of workpieces in the aerospace, automotive and food & packaging industries. They are ideal for applications that require only low clamping force, and keep the clamping area free of straps & clamping components, for unrestricted workpiece loading and unloading.
- To determine whether the left or right swing variant is ideal, you need to visualise the arm from above during the clamping stroke. Arms moving clockwise are right hand swing arms and arms moving counter-clockwise are left hand swing arms.
- Pneumatic swing clamps require spindles (flat tip, swivel foot or hex head), flanges, replacement seal kits, clamping arm adapters and end mounting feet assemblies for proper and smooth functioning.
