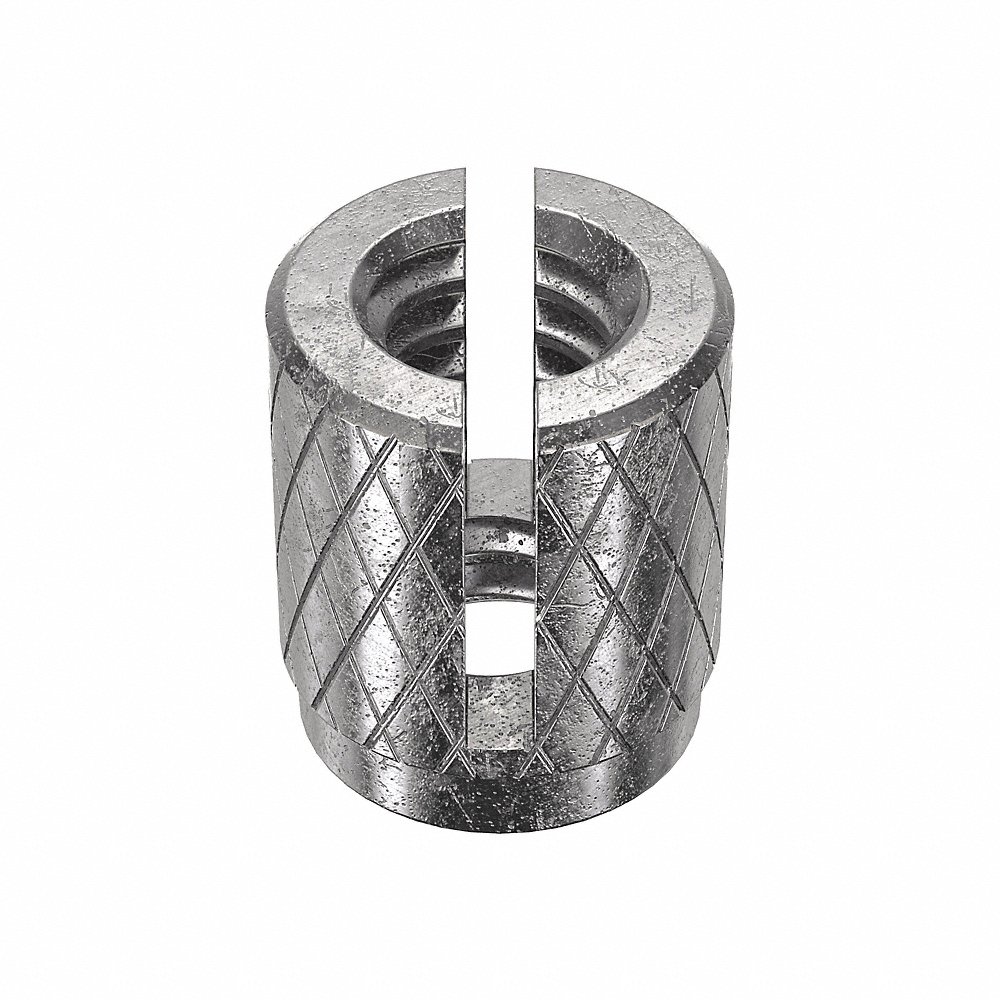

Grade 18-8 Stainless Steel Thread Inserts
E-Z LOK

Thread Size Overall Length Drill Size Thread Type Display Qty Flange Style Type Compatible Material Pkg. Qty. Price
#2-56 5/32" 1/8" Coarse 10 Flush Flush Plastic 10 $25.43
#2-56 5/32" 1/8" Coarse 25 Flanged Flange Plastic 25 $37.41
#4-40 3/16" 5/32" Coarse 10 Flush Flush Plastic 10 $13.54
#4-40 3/16" 5/32" Coarse 10 Flanged Flange Plastic 10 $21.13
#6-32 1/4" 3/16" Coarse 10 Flanged Flange Plastic 10 $25.34
#8-32 5/16" 7/32" Coarse 10 Flanged Flange Plastic 10 $23.54
#10-32 3/8" 1/4" Coarse 10 Flush Flush Plastic 10 $33.29
#10-32 3/8" 1/4" Fine 10 Flanged Flange Plastic 10 $29.97
1/4"-20 1/2" 5/16" Coarse 5 Flanged Flange Plastic 5 $25.14
1/4"-20 1/2" 5/16" Coarse 10 Flush Flush Plastic 10 $41.26
5/16"-18 9/16" 3/8" Coarse 10 Flush Flush Plastic 10 $49.09
3/8"-16 5/8" 7/16" Coarse 5 Flush Flush Plastic 5 $30.21
- - 3/16" Coarse - - Flush - 10 $15.61
- - 7/32" Coarse - - Flush - 10 $24.16

Description

Grade 18-8 stainless steel thread inserts, also known as flanged threaded inserts, are small cylindrical metal fasteners used to reinforce and strengthen threaded holes in various materials such as aluminium, magnesium or plastic.

Features

  • These flush-type inserts sit flush with the surface of the material for a smooth and seamless finish.
  • These inserts have coarse threads that offer strong engagement and excellent resistance to stripping.

Frequently Asked Questions

Which thread inserts are ideal for high-speed applications?

Can steel thread inserts repair cross-threaded holes?

  • Steel thread inserts are an effective solution for repairing cross-threaded or damaged holes. They can restore the original thread size and provide a stronger thread path, extending the lifespan of the threaded assembly.
Can Grade 18-8 stainless steel thread inserts be removed or replaced?

  • Yes, steel thread inserts can often be removed and replaced if necessary. Removal techniques vary depending on the type of insert, but they can usually be extracted with a standard tool set. It's essential to use the correct method to avoid damage to the parent material.
