Does thread gauge check minor diameter?

A threaded part's maximum minor & pitch diameter are measured using a Go thread ring gauge. The minimum pitch diameter on a threaded part must not be exceeded, according to the No-Go thread ring gauge.

What safety precautions should be taken while using thread measuring gauges?

Avoid exposure to extreme temperatures while storing thread gauges. Avoid thread gauges becoming rusty or dirty. Lubricate thread gauges timely and adequately. Keep track of the accuracy of thread measuring gauges.

Thread Measuring Gauges

Description
Features
Buying Guide
FAQ

APPROVED VENDOR

Steel Thread Measuring Gauges

Material	Measures	Range	Wire Dia.	Wire Length	Thickness	Finish	Type	Price
Steel	Screws, Bolts, Nuts, Washers And Wire Size	1/4"-20, 1/4"-28, 10-24, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20, 8-32, 4 mm to 12 mm, 6-32, 10-32, 1/2"-13, 1/2"-20	#14 AWG to #0 AWG	0" to 6"	0.9"	-	-	$115.29
Steel	Inch And Metric Thread Pitches	5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 1"-8 And 1"-12, M14 x 1.5, M14 x 2, M16 x 1.5, M16 x 2, M20 x 1.5, M20 x 2.5, M24 x 2, M24 x 3	0.063"	20"	-	Zinc Plated	-	$46.86

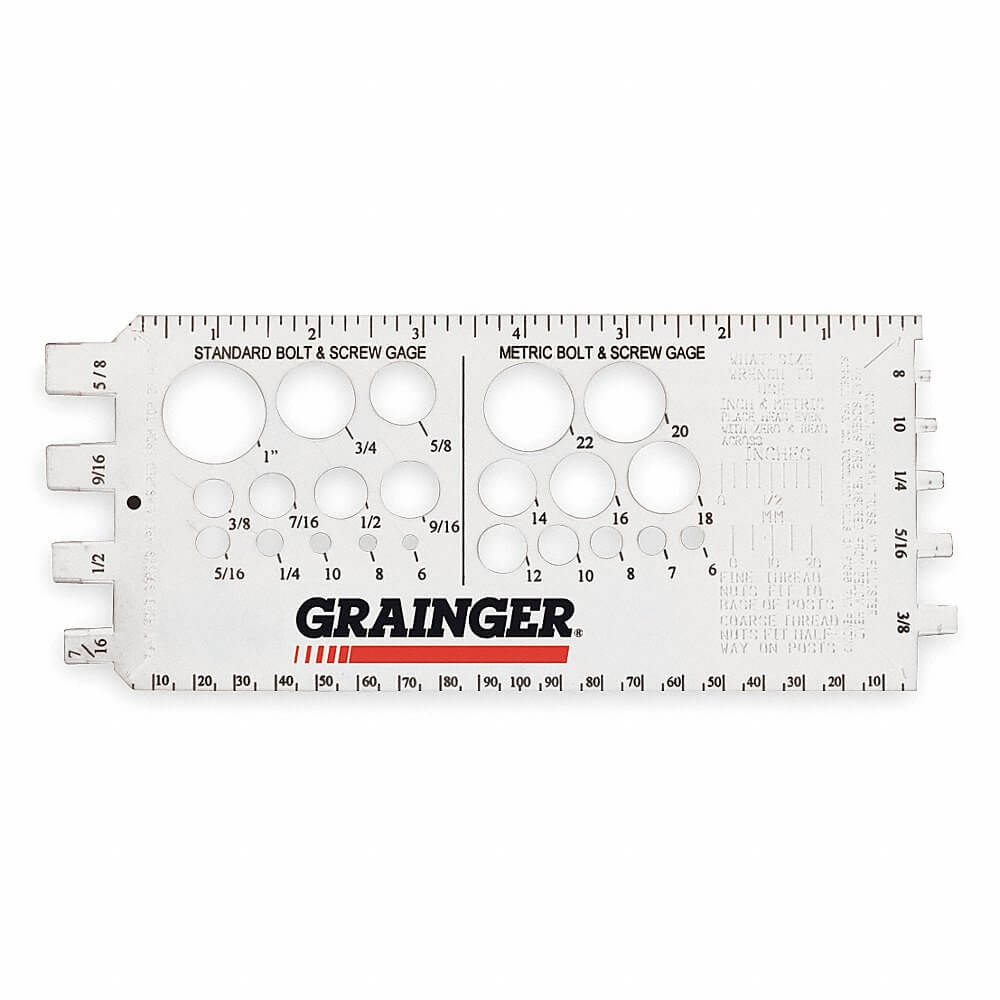

Plastic	Bolts, Nuts And Washers	USS And SAE #6 to 1", ID #8 to 5/8", 0 to 4", Metric Gauge 6 to 22 mm, Metric Length 0 to 100 mm	-	-	0.3"	-	-	$13.98
Steel	Nuts, Bolts And Screws	SAE #6 to 1/2" UNC and UNF, Metric Threads M4 x 0.7, M5 x 0.8, M6 x 1.0, M8 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.25, M10 x 1.50, M12 x 1.25, M12 x 1.50, M12 x 1.75 And Attached Ruler	0.063"	30"	-	Zinc Plated	Wire Lanyard	$46.87

GRAINGER

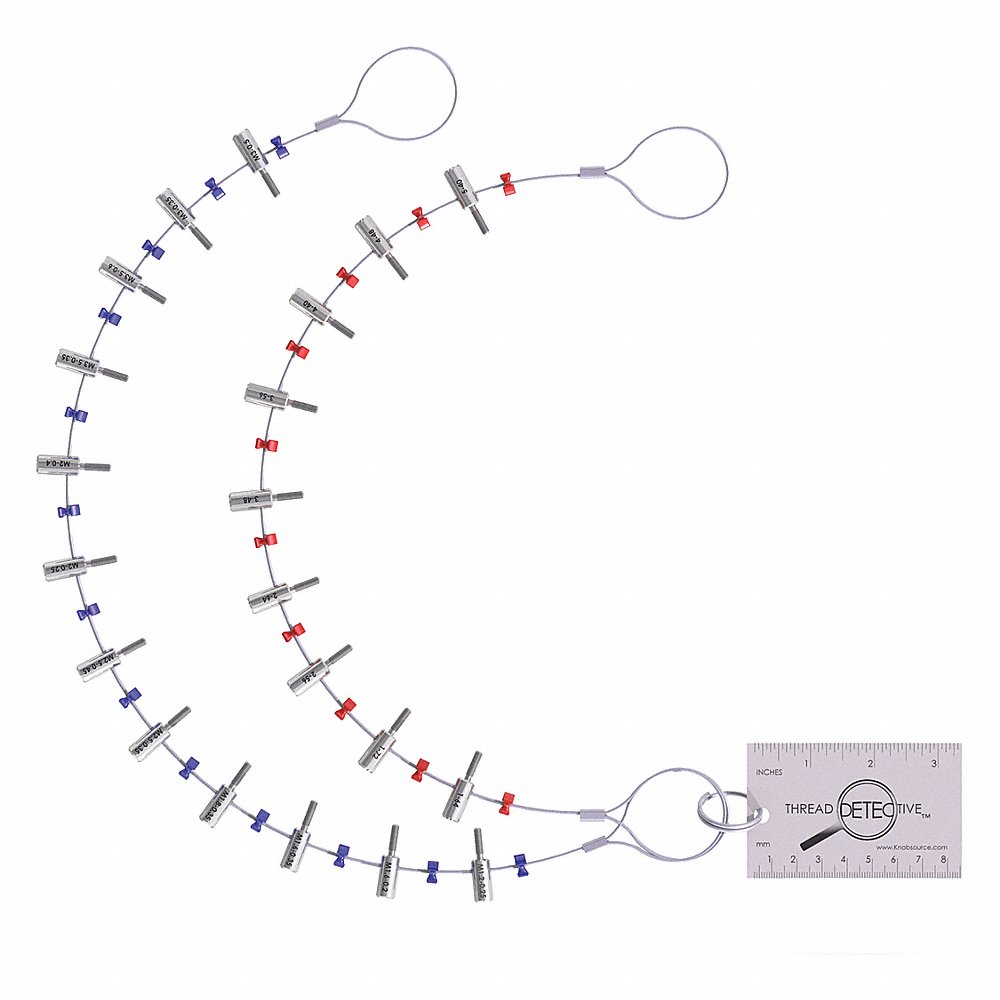

Thread Identifier, SS, 21 In Lg., 18 In Wire Lg., 2 1/2 In Wd.

Material	Measures	Range	Length	Width	Wire Dia.	Wire Length	Price
Stainless Steel	Inch And Metric Thread Pitches	1-64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-40, 4-48, 5-40, M1.2 x 0.25, M1.6 x 0.35, M1.6 x 0.20, M1.8 x 0.35, M2 x 0.4, M2 x 0.25, M2.5 x 0.45, M2.5 x 0.35, M3 x 0.5, M3 x 0.35, M3.5 x 0.6, M3.5 x 0.35	21"	2 1/2"	0.063"	18"	$51.87

Description

Thread measuring gauges are used to measure the size of an unknown bolt, nut, nail, hose, drill bit, pin, rivet, tap, threaded rods, screw, washer or wire quickly and accurately. Raptor Supplies offers a wide range of thread gauges from brands like Fabory, Grainger and Innovative Components. These gauges allow gauging of mass-produced threaded components for uniform tolerance, increased strength and durability. There are many different sorts of gauges, including thread gauges. They include screw thread inserts (STI), clued plug, ring, 3-wire, micrometre, tri-roll comparator, measuring wire, and roll thread gauges.

Features

The go / no-go status of hole and slot dimensions or positions in relation to prescribed tolerances are measured by thread plug gauges.
Three-wire thread gauges are devices that measure the size of the thread by mounting one wire in one holder and two wires in another.
Customised thread gauges using three thread rolls and a digital / dial display are called tri-roll comparators.
STI gauges, also known as a helical coil or Helicoil, are used in the automotive sector where a screw thread insert is employed.
Rolls with threads are called thread gauging rolls and are used with roll thread comparators.

Buying Guide

Based On Material

Stainless Steel

Corrosion, heat and fire-resistant properties with moderate structural rigidity

Plastic

Lightweight & cheaper to use than other materials

Steel

Provides hardness, structural rigidity and durability

Aluminium

Lighter than stainless steel and imparts non-magnetic properties

Based On Threads

UNC

They feature coarse spacing to easily loosen & tighten with few turns. These threads are compatible with UNRC and UNC threads.

UNF

They have fine spacing to prevent loosening while vibrating but are prone to jamming or stripping during assembly. These threads can mate with UNRF and UNF threads.

UNS

These threads are designed for special thread sizes that do not fall under UNC, UNF, UN or any other unified thread type. They can be fine, coarse, extra-fine or ultra-fine, but they mate with other UNS threads only.

NPT

These threads feature a tapered profile that wedges the mating threads together to ensure a leakproof seal without using a gasket or an O-ring.

Metric

These threads are measured in millimetres and are specified by their pitch & diameter. They can have coarse, fine, extra-fine or ultra-fine thread spacing and are compatible with other metric threads only.

Thread Fit Types

Class 2A

Provides a perfect thread fit that balances fastener manufacturing, performance, economy and convenience.

Class 2B

Features a 2A screw in a 2B hole; ideal for accommodating plating, coating and finishing to a fixed extent; offers fair tolerance allowances.

Class 3B

Ideal for applications that are close to tolerance limits.

Class 6H

Internal thread of tolerance Class 6 with position H; used for internal threads.

Class 3A

Provides no allowance and has very tight tolerances.

Class 6g

Metric version of thread fit and roughly comparable to 2A in the inch system. Used for normal length and medium tolerance quality of thread engagement.
