Do you have HVAC systems, such as central air conditioning or humidifiers, in your workspace? If yes, then it’s important to understand the significance of proper airflow for efficient HVAC system function. Air velocity, pressure and temperature are some factors that can significantly impact overall performance. Therefore, it’s essential to identify any potential issues that might affect the cooling / heating process. Raptor Supplies recommends using airflow measurement tools like anemometers to test and verify the HVAC system’s performance.
What are Anemometers?
Anemometers are compact hand tools that measure airflow, air volume and temperature in order to identify the cause of problems in heating, ventilation or air conditioning systems. These air velocity meters use different methods to determine the speed of airflow within ducts or rooms. To determine air velocity, anemometers detect changes in the physical properties of the fluid or the effect of the fluid on a mechanical device that is inserted into the flow. In addition, some anemometers can also measure parameters like humidity, dew point and static / differential pressure.
Types of Anemometers
There are two primary types of anemometers: vane anemometers and hot-wire anemometers. Vane anemometers use a mechanical device that rotates in the wind to measure the velocity of the airflow. This technology is useful for low-velocity airflow measurement but has limitations in high-speed airflow.
On the other hand, hot-wire anemometers use a thin, heated wire that measures the cooling effect of the airflow as it passes over the wire. It can measure both low and high-speed airflow with great accuracy. The hot-wire anemometers are usually used in laboratories, HVAC systems and wind tunnels.

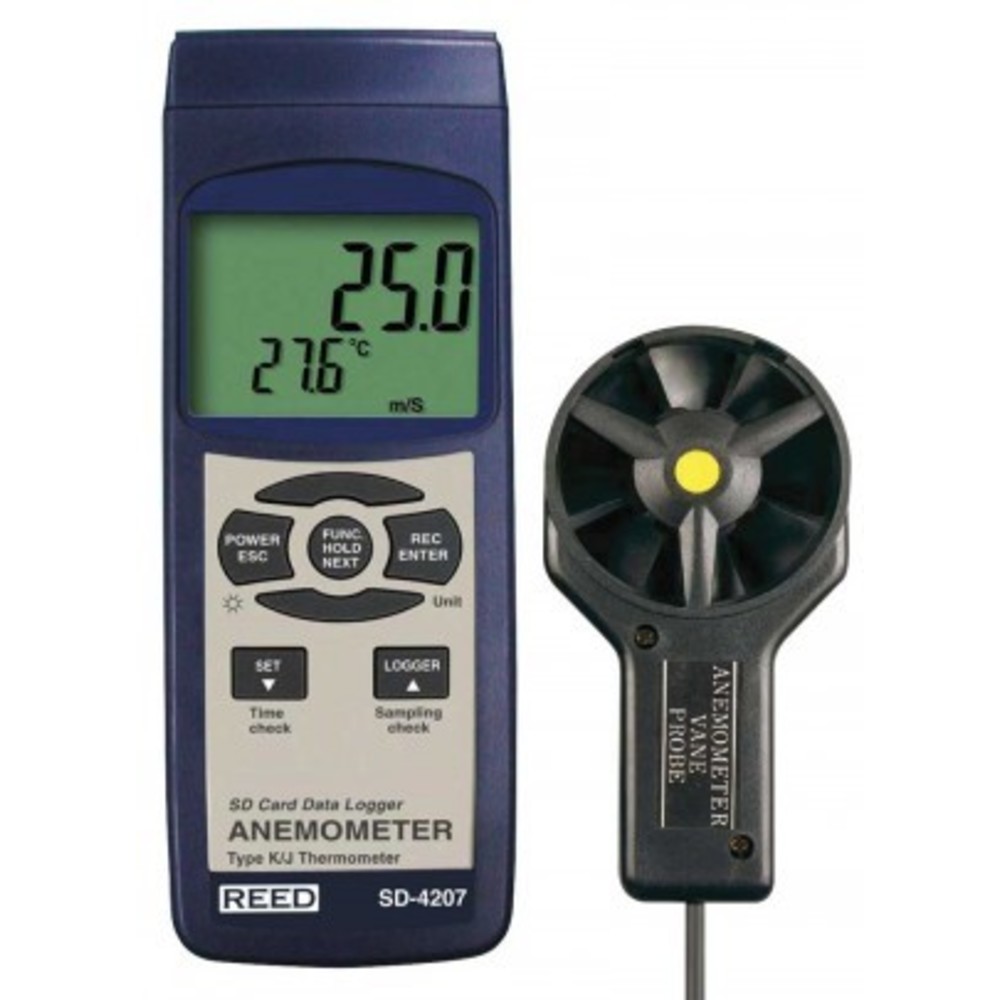

REED Instruments Vane Thermo-Anemometer

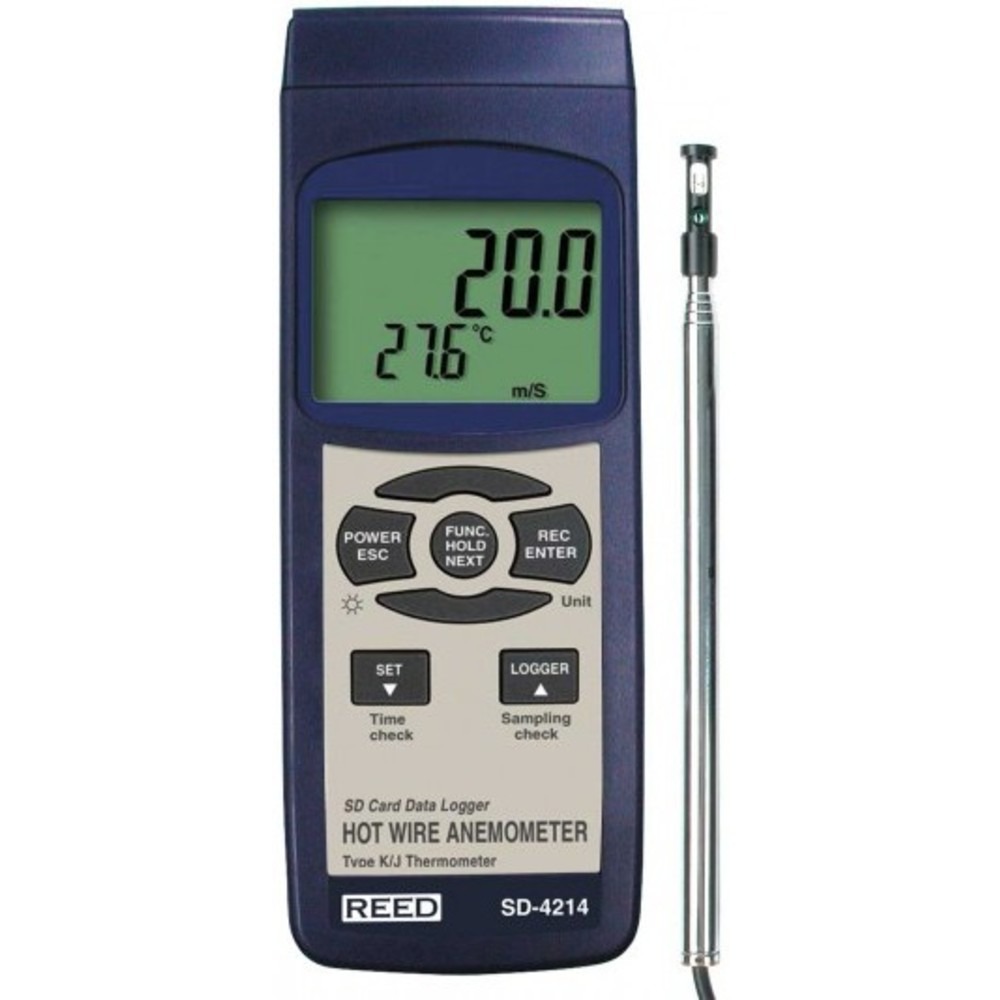

REED Instruments Hot-Wire Thermo-Anemometer
Working Principle
Vane anemometers operate by airflow hitting the vane, causing it to rotate. The rotation is sensed by a sensor that converts it into a velocity measurement. On the other hand, hot-wire anemometers heat a wire element well beyond room temperature. The rate at which airflow cools the wire is proportional to air velocity, providing precise measurements.
Manometers are another essential test instrument used to measure air velocity and volume. Using a manometer, anyone can measure the static and differential pressure of a system. It consists of a U-shaped tube filled with a liquid, usually water or mercury. The difference in pressure between the two sides of the tube creates a pressure differential that can be easily measured.
Why Choose Anemometers over Manometers for HVAC?
Anemometers Give Direct Measurements
Anemometers are devices that measure airspeed directly from the flow. They provide a more straightforward indication of the airflow within a duct. On the other hand, manometers measure the pressure difference, which requires the use of conversion factors and several calculations to determine the air velocity from that pressure reading. With anemometers, you only need to place them in the airflow to get the required measurement.
Anemometers Have a Wider Range
Anemometers are devices primarily designed for measuring air velocities, unlike manometers, which are used to measure pressure. They can handle a broader range of air velocities compared to manometers and can measure airspeed from as low as 0.15 m/s to as high as 100 m/s, depending on the model. Anemometers are versatile and can also be used to measure room temperatures and humidity levels.

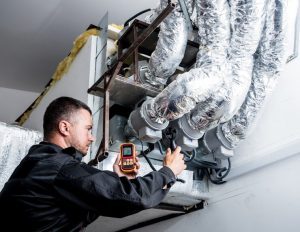

The broad range of measurement is important in HVAC systems, where airflow can vary significantly depending on the application. Anemometers can measure both low airspeed near a diffuser and high velocity in a main duct, making it crucial for maintaining optimal airflow and temperature control in buildings. These air velocity meters can also be used for outdoor applications. You can use them for weather monitoring, wind energy generation and aviation to measure wind speed.
Anemometers are Simple
Anemometers are generally more user-friendly than manometers, particularly when it comes to quick spot checks. They are equipped with digital displays to provide real-time readings. These air velocity meters eliminate the need for complex calculations on your part. As a result, they are ideal for field technicians who need to take quick measurements during system balancing or troubleshooting.
10 Common Mistakes to Avoid While Using Anemometers
Here are some rookie mistakes to avoid when using an anemometer in HVAC systems:

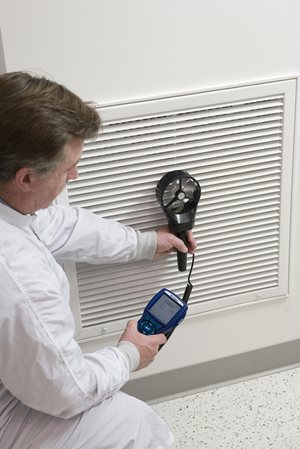

#1: Holding the Anemometer Incorrectly
When you’re using an anemometer, grip and orientation are key. Hold it steady and keep the sensor pointing straight at the airflow. If you tilt it or move it around while you’re measuring, you’ll get shaky readings.
#2: Measuring at Inconsistent Heights
Measure airflow at a consistent height within a duct or room to obtain comparable data. For instance, in a duct, choose a fixed point like the centre, a set distance from the top, or the bottom. Maintain this measurement height for all subsequent readings.
#3: Skipping Warm-Up Time
When you’re using an anemometer, it’s important to give it a little time to warm up before you start taking readings. Some of these devices need time to reach their operational temperature and stabilise their sensors. If you don’t wait for the manufacturer-specified warm-up period, you will end up with inaccurate data. So, be patient and give your air velocity meter a chance to get ready before you start measuring.
#4: Using a Dead Battery
Low battery levels can really mess up the sensor’s performance or even make the device shut down all of a sudden. Therefore, keep an eye on the battery levels and replace them regularly. When you have a fully charged or fresh battery, you can be sure that the anemometer will work the way it’s supposed to.
#5: Not Zeroing the Device
Did you know that zeroing is a crucial step when it comes to accurate airflow measurements? It’s like setting the baseline, making sure that any minor errors or sensor drift don’t mess with the readings. If you skip zeroing, those little errors can add up, leading to measurements that are way off the mark. So, don’t neglect zeroing!
#6: Ignoring Cross-Sectional Variations
Air doesn’t flow the same everywhere inside a duct. It’s like a highway with cars; some lanes are faster, and some are slower. To get a good idea of how much air is flowing through the duct, you need to measure it at different points, like in the corners and the centre. Then, average those measurements to get a more accurate picture of the overall airflow.
#7: Taking Readings Too Quickly
Moving that anemometer too quickly through the air can mess with the sensors. You need to hold that device steady in one spot until the reading settles down and gets stable. That way, you can be sure that you’re getting an accurate measurement.
#8: Not Recording Environmental Conditions
When you’re taking measurements, keep an eye on the temperature, humidity and air pressure. These factors can alter the airflow. So, you need to know what they are to get accurate results.
#9: Using the Wrong Units
The biggest mistake newbies make is forgetting to check the measurement units before they start. Compact anemometers can measure airflow in different units, like feet per minute or meters per second. Therefore, it would be better if you understood and used the correct units for your specific application. Otherwise, if you mix and match units, your calculations and comparisons will be all messed up. So, double-check those units before you start measuring.
#10: Overlooking Device Limits
Always make sure to check the specific range for your anemometer. Using it outside of this range can lead to inaccurate readings, whether the airflow is too high or too low. So, before you start measuring, take a moment to read the device specifications. Ensure your measurements fall within the stated range. That way, you can be confident that your readings are reliable.
Use Anemometers Like a Pro
Checking airflow is not a very difficult task. But to be one step ahead of your competitors, you need to act smarter than them. Here are a few ways, you can use anemometers or other air velocity meters:
#1: Use Data Logging and Other Measurement Tools
Consider using anemometers with built-in data-logging capabilities. These anemometers can record measurements over time, which is crucial for monitoring trends and identifying intermittent issues. For example, you can leave the anemometer in place for a few hours or days to gather continuous data. This data can then be analysed to observe how airflow changes throughout the day or in response to system operations.
You can also integrate anemometer readings with devices such as hygrometers (for humidity), thermometers (for temperature), and manometers (for pressure). This approach will help you understand how different factors interact and affect airflow. For instance, higher humidity might lower air density, which in turn affects velocity readings.
#2: Apply Statistical Analysis & Cross-Sectional Airflow Mapping
To get the most out of your data, you need to use statistical methods. Calculate averages, standard deviations and variances to spot any faulty readings. These methods can reveal patterns or anomalies that might not be obvious at first glance.
And here’s a trick: instead of taking just one measurement, take multiple readings at different points across the duct’s cross-section. Create a grid pattern and measure at each intersection. Software tools like FLUENT or SimScale can help you visualise this data and create a detailed airflow map. This map will show any inconsistencies or areas of poor flow. It’s like having X-ray vision for your ductwork!
#3: Benchmark Against Standards & Conduct Performance Audits
Remember to regularly compare the airflow measurements from your HVAC system to the standards and guidelines set by ASHRAE. These standards provide benchmarks for airflow rates, temperature differentials and other important parameters.
Also, remember to conduct comprehensive performance audits using detailed airflow data. This means systematically checking the airflow at various points throughout the system and comparing the measurements to the expected values. In addition, performance audits help identify inefficiencies, deviations from expected performance, and areas that need maintenance or optimisation.
Anemometers are essential in HVAC systems. They help the user maintain the right airflow and reduce energy waste. Raptor Supplies offers anemometers and many other test instruments from popular brands like REED, Extech and Dwyer Instruments. We can also recommend suitable air velocity meters for targeted applications in boilers, heat pumps or steamers.
