Needle Scaler Blog

Needle scalers are suitable for chipping away rust, paint, weld slag, scale and other debris. They make use of vibrating needles to remove unwanted materials from surfaces. The needle delivers a rapid sequence of light blows to remove buildup cleanly.

These pneumatic tools are especially useful in the metal fabrication, construction and automotive industries because they can:

  • clean intricate areas inaccessible to brushes or sanders,
  • prepare surfaces for painting or welding without damaging the underlying material and
  • remove stubborn materials that regular cleaning methods struggle with.

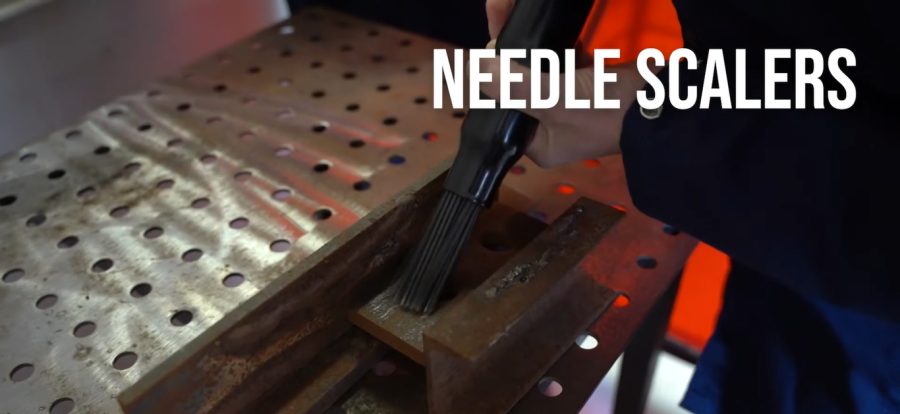

Cleaning Surface with Pneumatic Tools

Types of Needle Scalers

Needle scalers come in various configurations. However, they can be broadly classified according to their power source. The two main types are pneumatic and electrical.

Pneumatic Needle Scalers

These scalers use compressed air as their power source. Compressed air enters the tool and flows through a valve to a piston chamber. The rapidly expanding air in the chamber propels a piston forward, striking a shank containing the needle attachments. This rapid back-and-forth movement of the shank produces a hammering action. As a result, the needles vibrate, and the impact is then transferred to the surface being worked on.

Electric Needle Scalers

Electric needle gun scalers are a silent alternative to pneumatic models. They rely on an electric motor for power. The motor generates a similar rapid hammering motion, vibrating the needles and impacting the surface.

Read More:

How to Use an Electric Needle Scaler?

Struggling to choose between a pneumatic or electric needle scaler? Consider the application at hand, the desired performance level and operating environment considerations like noise and maintenance needs. Refer to the table to make the right choice.

Electric Needle ScalerPneumatic Needle Scaler
Pros1. Quiet Operation
2. No Exhaust Fumes
3. Lightweight Reduces Operator Fatigue
4. Compact Design for Manoeuvrability
1. Powerful Enough to Handle Tough Jobs
2. Can Accommodate Different Needle Sizes
Cons1. Not Suitable for Heavy-Duty Applications
2. Restricted Tethered Operation
3. High Upfront Cost
1. Heavy Weight Causes Operator Fatigue
2. Bulkier Design Limits Access in Tight Spaces

Common Needle Scaler Applications

The needle scaler is a simple tool that can effectively clean surfaces in various workplaces. Discover how needle scalers can be your secret weapon in achieving a clean and prepped surface.

Needle Scaler Applications: Metal Fabrication, Construction & Automotive

1. Metal Fabrication

All over the globe, metal fabricators prefer needle scalers for cleanup. They are especially beneficial when working on intricate details or reaching tight corners. Unlike bulky cleaning methods, needle scalers can navigate seams, grooves and welds with ease. They excel at cleaning up surfaces by chipping away at unwanted materials. Here are five ways they come in handy:

  1. Needle scalers are perfect for preparing objects for welding. They remove rust, paint and weld slag to create a clean surface.
  2. You know welding can leave behind spatter and discolouration. This is where needle scalers come in handy. They can quickly remove these imperfections, leaving a clean and smooth finish.
  3. In addition, if you need a rougher surface texture, you can use them to create texture on metal surfaces.
  4. They can strip off unwanted coatings, like old paint or adhesives, from metal surfaces.
  5. Needle scalers can also be used with finer needles to gently remove small imperfections. As a result, you get an on-demand flawless look after the initial cleaning.

2. Construction

Construction sites often get cluttered with concrete splatter, adhesives and unwanted materials. These materials can obstruct progress and lower the overall speed. This is where needle scalers come to the rescue. With needle gun scalers at hand, you can:

Chip Away Excess Concrete

Needle scalers can chip away excess concrete or mortar with ease. They can clean up imperfections around doorways, window frames or areas where formwork was recently removed. They can also roughen surfaces before applying a new layer of concrete or bonding material, creating a better bond between the layers. You can also opt for these scalers for demolition work in small areas or breaking apart weak concrete sections.

Remove Rust From Metal Surfaces

The hammering action and sharp needles of the scaler effectively remove rust from metal surfaces. This is beneficial for preparing metal beams or reinforcements. They can also be used to clean corroded pipes, metal fixtures or any other metal surface that has accumulated rust.

Improve Traction on the Floor

If your construction site receives a lot of downpours, you can improve traction on the floor and walkways with them. These pneumatic tools can create textured surfaces on concrete, stone or brick. A textured surface can also prepare surfaces for better adhesion of paint or coatings. As a result, the needle scalers find application in ensuring the last longing bonds.

Create Grooves on Stones

In stonework, needle scalers can be used for light chiselling tasks. When working with stone, it’s sometimes necessary to roughen the surface to create a better key for mortar to bond with. Chisel scalers can achieve this effectively. In addition, you can use them for creating decorative grooves or patterns on stonework.

Clean Residual Materials

Beyond concrete and metal, needle scalers can be helpful for general cleaning tasks as well. They can effectively remove stubborn paint or sealant residue from the surface. You can also use them to break up light welds or weld slags.

Remember, needle scalers are for heavy-duty cleaning and material removal. For more delicate tasks, other tools might be better suited.

3. Automotive

For automobile workshops, restoring a classic or simply servicing vehicles, needle scalers are a valuable asset. Their uses extend beyond restorations. They are also fantastic for cleaning engine components and removing excess build-up. Additionally, you can use them to tackle the undercarriage of a car. Needle gun scaler is useful for:

Engine Cleaning & Degreasing

Grease, grime and carbon deposits can build up on engine components over time. Needle scalers can help you remove these stubborn deposits.

Removing Seized Parts

Corrosion and wear cause mechanical parts to seize or become difficult to remove. Needle scalers can help break the binding between seized pieces, such as nuts and bolts.

Why Choose Needle Scalers?

Traditional cleaning methods might get the job done. But, they lack the efficiency and precision offered by needle scalers. Here’s why using a needle scaler can transform your cleaning projects:

Reason for Choosing Needle Gun Scaler

Saves Time

With needle scalers at hand, you can remove stubborn materials quickly. As a result, project completion times are faster, and productivity is higher.

Precision

The needle gun scalers are compact in size. Their manoeuvrability assists users in reaching tight spaces without damaging surrounding materials.

Multi-Purpose

These scalers can tackle various cleaning challenges. They can handle rust, paint and weld slag.

Needle Scalers Safety Considerations

Just like any other operation, scaling also requires users to adhere to certain safety measures. As a site-in-charge or factory owner, here are a few things you should tell your workers:

Prioritise Personal Protection

When working with a scaler, it’s important to prioritise personal protection. As you chip away at surfaces, there will likely be sparks and debris flying around, so it’s crucial to shield your eyes. Raptor Supplies recommends providing your workers with a pair of safety glasses to protect their vision.

Additionally, continuous exposure to the noise generated by a scaler can be harmful to one’s hearing. To prevent this, it’s a good idea to provide your workers with earplugs or noise-cancelling headphones to keep their hearing intact.

Be Aware of Your Environment

When using the scaler, make sure no one is in the line of fire. To avoid fires, keep an eye out for potentially flammable materials near your worktable.

Handle the Tool Properly

Maintain a firm grip on the scaler during operation to avoid injuries or loss of control and ensure efficient cleaning.

Maintain the Tool Regularly

Needle scalers have moving parts. And moving parts require lubrication. So, regularly lubricate the moving parts of a needle scaler to ensure smooth operation and extend the tool’s lifespan. Additionally, keep an eye on the condition of the needle. If you notice that the needle is worn out, replace it promptly. Worn-out needles are less effective and can potentially break or damage the surface being cleaned.

Work Safety

Raptor Supplies is your go-to international MRO supplier for these pneumatic tools. We offer the entire range to customers in the UK, Europe, the Middle East, Africa as well as Asia. You can also contact us anytime through our 24×7 chat support, phone, WhatsApp or email. Also, discover what our valued customers say about our service on our dedicated review page!

Harshul Gotra

Harshul is a civil engineer and has on-site experience working with MRO tools. He has a knack for storytelling and the ability to explain complex tools.
